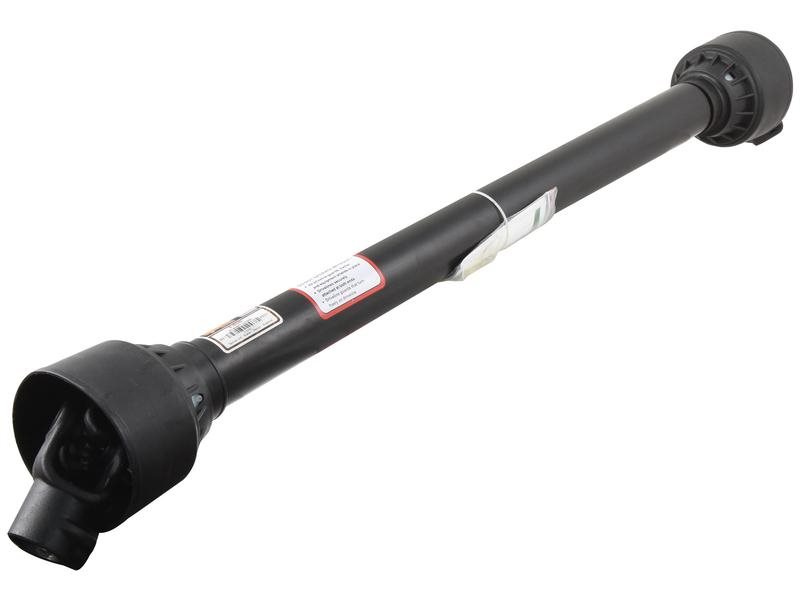

Sparex AB4/A4 PTO Shaft (1310mm, 35HP)

High-Quality Italian Sparex PTO Shaft for Tractors

Upgrade your tractor's performance with this premium-quality Sparex AB4/A4 PTO Shaft. Measuring 1310mm in length and rated for 35 horsepower at 540 RPM, this Italian-made shaft is built to last.

Crafted from robust materials, the Sparex PTO shaft delivers exceptional durability and reliability. It's designed to withstand the toughest farming conditions, ensuring your tractor can power through any task with minimal downtime.

The AB4/A4 series is renowned for its superior construction and precision engineering. This PTO shaft features high-quality universal joints that provide smooth operation and reduce wear on your equipment over time.

Whether you're a farmer or mechanic looking to replace worn-out parts, this Sparex PTO shaft offers an affordable alternative to expensive OEM replacements. Trusted by professionals across New Zealand, Sparex provides the quality and performance you need at a price that won't break your budget.

Sparex

• Grease Coupler
• Central Grease Nipple
• HP Rating @ 540RPM 35
• HP Rating Range @ 540RPM up to 54
• Implement End 1 3/8'' x 6 Spline Q.R.
• Italian Series AB4/A4
• Kilowatt Power Rating @ 540RPM 26

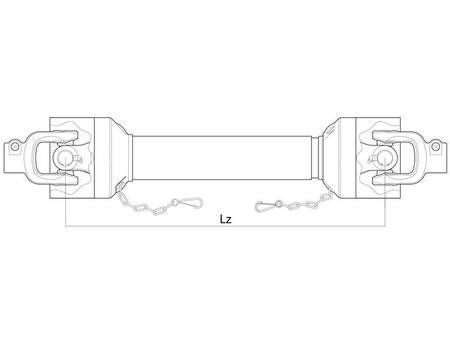

• Lz Length (mm) 1310
• PTO Series AB4/A4
• ​Torque (Nm) 460
• Torque Range (Nm)335 - 1240Nm
• Total Closed Length (ins)49.4
• Total Closed Length (mm)1525
• Tractor End1 3/8'' x 6 Spline Q.R.
• Tube ProfileTriangle
• Tube Ref12507/12508
• Universal Joint Dimensions 27 x 74.5mm
