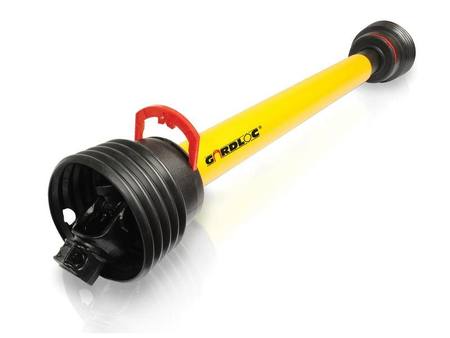

Gardloc PTO Shaft - Heavy-Duty, Italian Series AB6/A6

High-Quality PTO Driveshaft for Farm Tractors and Agricultural Machinery

The Gardloc PTO Shaft AB6/A6 is a premium quality driveshaft engineered specifically for demanding agricultural use cases. This Italian series shaft offers exceptional durability, reliability, and performance.

With a max HP rating of 64 at 540 RPM and an overall length of 560mm, this PTO shaft provides the power and strength needed to handle even the most challenging farm equipment applications. It's a perfect fit for heavy-duty tractors and machinery that require robust drivetrain components.

Crafted with precision engineering techniques and premium materials, the Gardloc AB6/A6 PTO driveshaft delivers long-lasting performance under high loads and harsh conditions. Its Italian Series construction ensures consistent quality, making it a reliable choice for farmers seeking dependable tractor parts that can withstand the rigors of daily agricultural work.

Whether you're looking to replace your existing PTO shaft or need an upgrade for your heavy-duty farm equipment, the Gardloc AB6/A6 is an excellent investment. Its durability and power make it a top choice for farmers who prioritize quality and reliability in their machinery.

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

•  Brand GARDLOC
• Grease Coupler
• Central Grease Nipple
• Guard Type Gardloc
• HP Rating @ 540RPM 64 HP
• Rating @ 1000RPM 83 HP Rating
• Range @ 540RPM 55 to 119
• Implement End 1 3/8'' x 6 Spline Q.R.
• Italian Series AB6/A6
• Kilowatt Power Rating @ 540RPM 47
• Kilowatt Power Rating @ 1000RPM 61

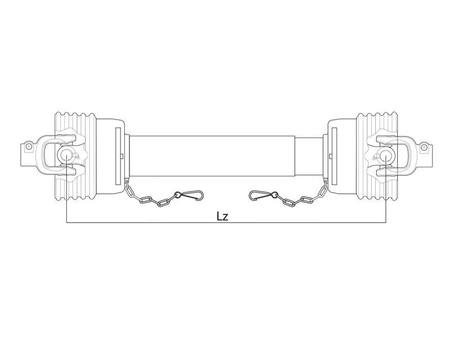

• Lz Length (mm) 560
• PTO Series AB6/A6
• Replacement Guard S.163812
• Torque (Nm) 830
• Torque Range (Nm) 335 - 1240Nm
• Total Closed Length (mm) 796
• Tractor End 1 3/8'' x 6 Spline Q.R.
• Tube Profile Triangle
• Universal Joint Dimensions 30.2 x 92mm
